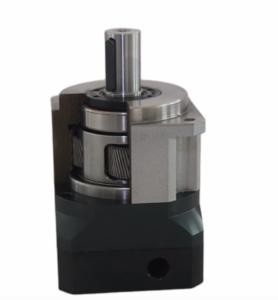

Superior Quality Servo Motor Waterproof Precision Flange Output Planetary Gearbox
1.Product Specification:
| Product Name | planetary gearbox |
| Applicable Industries | Servo Motor |
| Gearing Arrangement | Planetary |
| Ratio i | 3,4,5,6,7,8,10 |
| Input interface | According to motor output |
| Max. radial load (N) | 3200 |
| Max. axial load (N) | 1600 |
| Rated input speed (r/min) | 3000 |
| Max. input speed (r/min) | 6000 |
| Noise (db) | ≤60 |
| Backlash – Class P2 (arcmin) | ≤5 |
| No-load torque at 20oC (Nm) | ≤0.1 |
| Operating temperature (℃) | -15 to +90 |
| Service life (h) | ≥20,000 |
| Protection grade (IP) | IP54 |
| MOQ | 1 |
2.Description Of Product:
1).The helix angle products smooth and quiet operation with decreased backlash (less than arc-minutes and ≤56 dB).
2). The hoop clamping system provides seamless power transmission without assembly. 100% concentration allows rotation and higher input speed capability.
3).Bushing module system design: The unique motor adapter and bushing module system design allows for quick and easy mounting of any motor.
4).Single piece structured ring gear with housing internal ring gear is machined directly into a single piece of steel. Maximized diameter and number of teeth to improve overall performance and torque capacity.
3. Drawing :
4. Company introduction:
Changzhou Hejie Motor Co., Ltd. is located in the rich rao beautiful developed China motor town -- Changzhou city, founded in 2009, is specialized in research and development, production, sales of motor an enterprise. The company has accumulated more than ten years of experience in motor design and manufacturing, and has a number of invention patents and utility model patents. The company mainly r & D and production series stepper motor, the series brushless DC motor, AC/DC servo motor. The motor sells well all over the country and is exported to more than ten countries and regions. The products have passed CE and ROHS certification, and the company has passed ISO9001 total quality management system certification. Company products are widely applied to carved machine, embroidery machine, industrial robots, robots, unmanned aerial vehicle (uav), CNC machine tools, digital printing, computer flat knitting machine, 3 d printing, packaging machinery, industrial printers, medical equipment, new energy vehicles and other automation control and automation equipment in the system.
Production equipment:
Related Qualification Certificate:
5. FAQ:
Q1:Are you manufacturer ?
A1:Yes, we are the manufacturer of gear motor and planetary gearbox.
Q2 : What specifications we need before you place an order?
A2 : Rated torque, Rated speed, IP Grade, mounting dimensions.
Q3 : What is the price ?
A3 : Price always depends on quantity, we offer range pricing
Q4 : Is it customized ?
A4 : Yes, different clients have different requirements, so we customize for you. .
